7 INCH & 7 MAXX

ALL-WEATHER CORD REEL PLATFORM

cord reel

The 7 INCH and 7 MAXX cord reel platforms feature Konnectronix’s patented brushless retractable cord reel technology and strain relief design, which provide uninterrupted signal transmission and ensure continued reliability in all weather.



Traditional power cord reels use brushes or contacts, but our solutions are different, as data and power continuity are maintained by hardwired connections. Discerning customers who seek reliability over all else, choose the KonnectronixTM difference.



7 INCH retractable cord reel

Konnectronix has expanded its proprietary cord reel technologies to create the patented 7 INCH cord reel platform. This UL 746C certified cord reel, which has a NEMA 3R

enclosure, stands in a class of its own as a submersible (with connectors dry) cord reel solution that truly delivers. This cord reel has been tested to withstand harsh weather conditions and can be customized to meet your needs.



7 MAXX retractable cord reel

The 7 MAXX is an extension of Konnectronix’s 7 INCH cord reel platform, which takes the standard 15 FT maximum cable extension of the 7 INCH cord reel to 25 FT, with less than a 1 Inch depth increase over the standard platform. With all of the same performance and ruggedness of the 7 INCH platform, this solution goes the distance.



all weather cord reel platforms

The Konnectronix 7 inch and 7 MAXX cord reel

platforms are suitable for water exposure, UV light

and immersion in accordance with UL746C.

Built to withstand -30C to 50C operating

temperature, these platforms are built to perform.



contact us >>

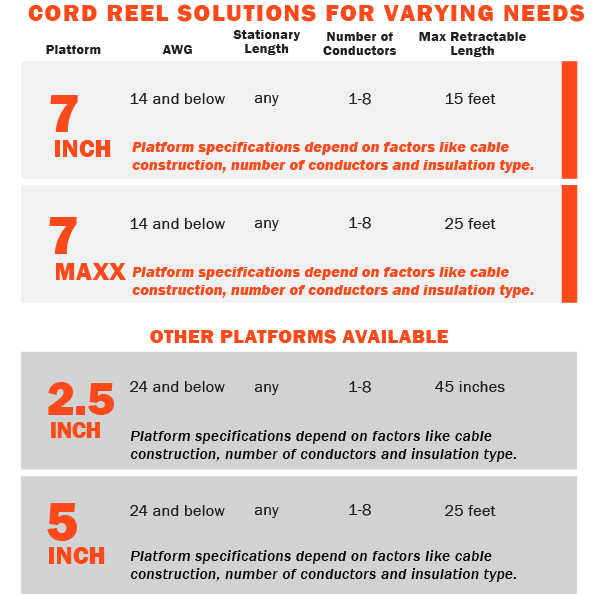

SPECIFICATIONS

Electrical

15 Amp Max (14 AWG)



Environmental

Indoor/Outdoor Use

Suitable for water exposure, UV light and immersion in accordance with UL746C

-30C to 50C Operating Temperature



Material

Housing: UL V0, UV Resistant Polycarbonate

Spring: Stainless Steel

Available Colors: Black, White

(custom colors available in high volume)



Physical

Dimensions: 7 INCH:  7" W x 7" L x 2.63" D

                    7MAXX:  7" W x 7" L x 3.38" D

Cable: Customer Specified

Connectors: Customer Specified

Retractable Cable Length: Up to 25 Ft.

Mounting Options:

  Flush Mount

  Brackets

Optional Internal Ratchet System



Certification

UL - Tested to UL 355 Section 52, 53, & 54, and UL746C

NEMA 3R Enclosure

Custom/Specialty Certifications upon request.



Patented Technology

The 7 INCH and 7 MAXX platforms may be covered by one or more

patents. For a complete listing, please visit

www.konnectronix.com/legal.html







DOWNLOAD DATA SHEET >>

CONTACT US >>
