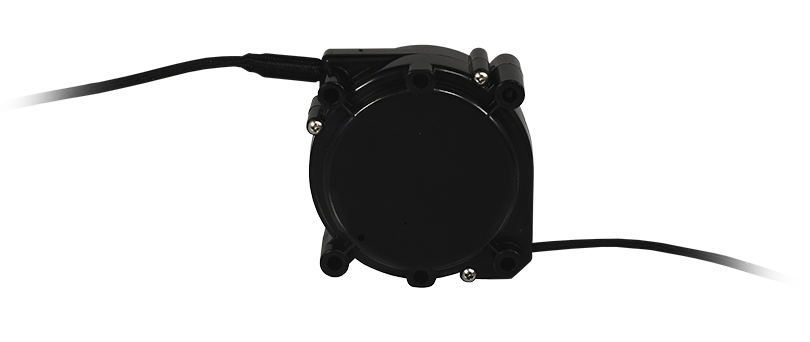

2.5 INCH

LOW VOLTAGE POWER AND DATA CORD REEL PLATFORM

The 2.5 INCH platform was originally designed for retail security and highly regulated communication applications. This cord reel offers cable lengths of up to 45 inches and provides uninterrupted, low-voltage power, data and signal transmissions in a compact and versatile profile. With cable options ranging from the company’s patented USB 2.0 cable construction to standard telephony cabling, this platform has been tested to keep performing with extensive use and in rugged environments.

SPECIFICATIONS

Electrical

5V @ 2.2A (based on standard cable configuration)

Characteristic Impedence Matching Available

Environmental

-20°C to 85°C Operating Temperature

Material

ABS (Black)

(Custom Colors Available in Volume)

Physical

Dimensions: 2.5” Diameter x 1.75” High

Retractable Cable Length: Up to 45 Inches*

Cable Type: Customer Specified

Connectors: Customer Specified

Mounting Options:

Flush Using Inserts

Brackets Available

Optional Internal Ratchet System

Certifications

Custom/Specialty Certifications, Including ROHS Compliance, Upon Request

Patented Technology

Depending on product configuration, the 2.5 INCH Platform may be covered by one or more patents. For a complete listing, please visit www.konnectronix.com/legal.html

* Retractable lengths depend on cable construction (e.g. number of conductors and insulation type)
